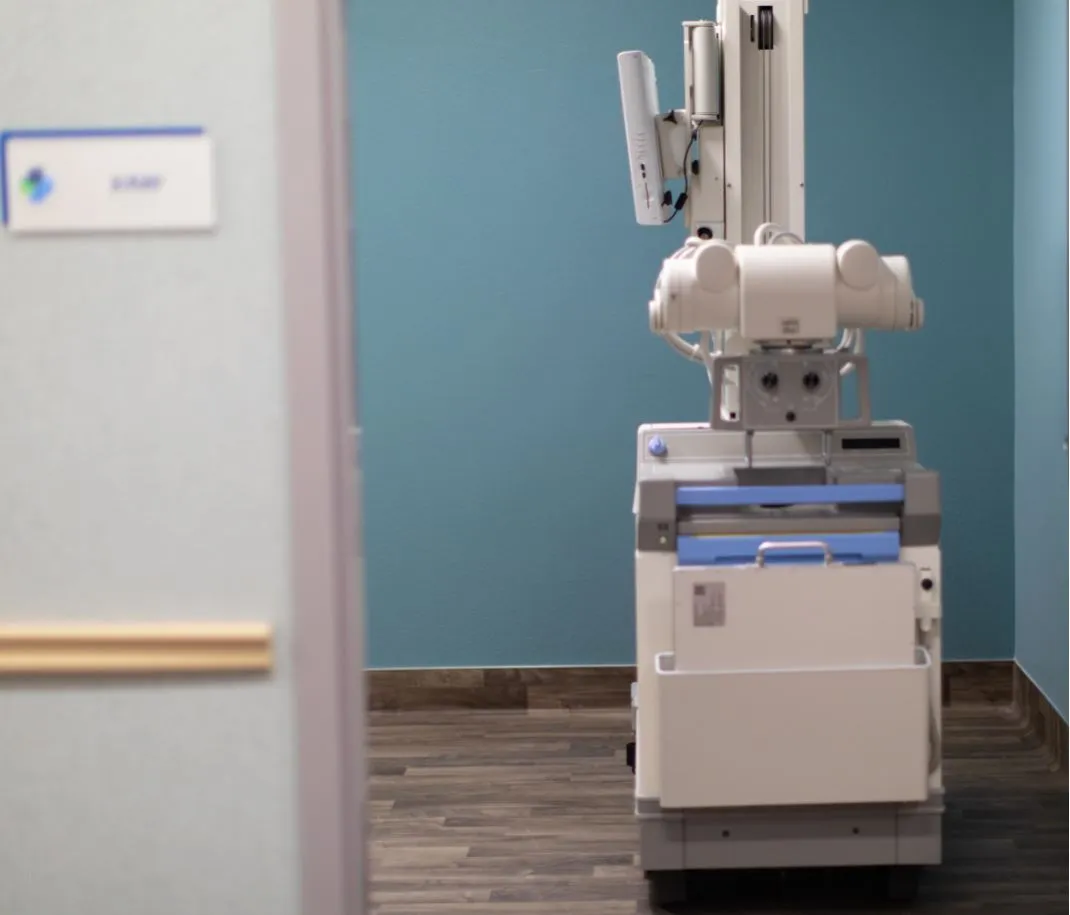

GE AMX-4 Plus Portable X-Ray Including:
- A complete overhaul of mechanical and electrical components
- Structural reinforcements
- All worn and broken parts replaced with OEM parts
- Verification/installation of all current upgrades and FMI's
- Collimator - rebuilt with OEM parts including new cables, guards, faceplate, crosshair window, bulb, knob, dials, SID tape
- Tube - parts replaced with new OEM Rotor cable, decals
- Collimator alignment performed
- Yoke - Détente bearings
- Horizontal Arm - rebuilt with OEM parts
- The new lock, brake, brake cable, upgraded latch assembly
- Column - rebuilt with OEM parts
- New style column shell with ± 270° Rotation
- New carriage, cables, safety cable, upper break, lower break, détente assembly
- Safety cable tension set to OEM factory specs
- New 4 Plus HV cables, HV clamps, inner & outerwear strips
- Reinforced top cover, labels, key switch (Digital Key Pad optional)
- The front panel, side panels, decals, wear strips, wear strip rubbers
- New style drawer, mat with inside covers replaced
- New hand-switch with new cable & hanger complete with remote field light option (Remote Tech Switch optional)
- New style drive handle assembly
- Kick-plate, wear strips and rubber
- Complete base assembly with drive motors, drive wheels to drive wheel mounts, spring loaded casters, electro-static discharge cables, corner pads, wear strips new switches in bumper
- Electronics package removed, disassembled and all boards replaced with current revisions to include: CPU, Fil KV, 1 Khz, Rotor, Charger and drive boards
- New style wiring harness, latch upgrade, new style CPU cabling with choke during the charge cycle
- Six (6) ESD (Electro-Static Discharge) devices throughout electronics package
- New maintenance-free, rechargeable lead/acid batteries with interface kit and terminal block
- Complete system calibration in full compliance with BRH standards
- Complete cosmetic repairs & refinishing with OEM paint
- Complete service documentation
- 12-month parts warranty including tube
- 12-month pro-rated warranty on batteries
- Free technical support

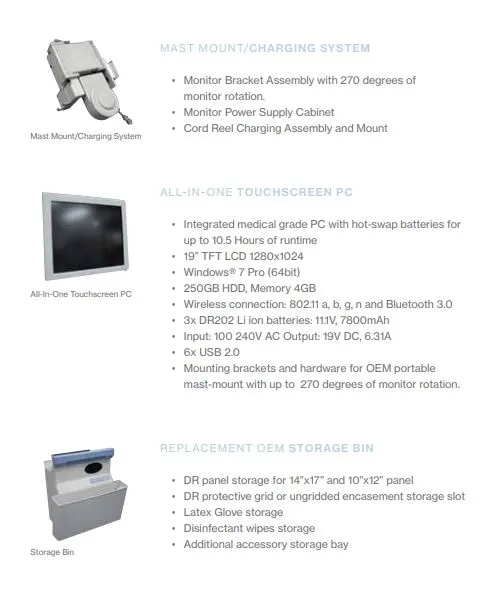

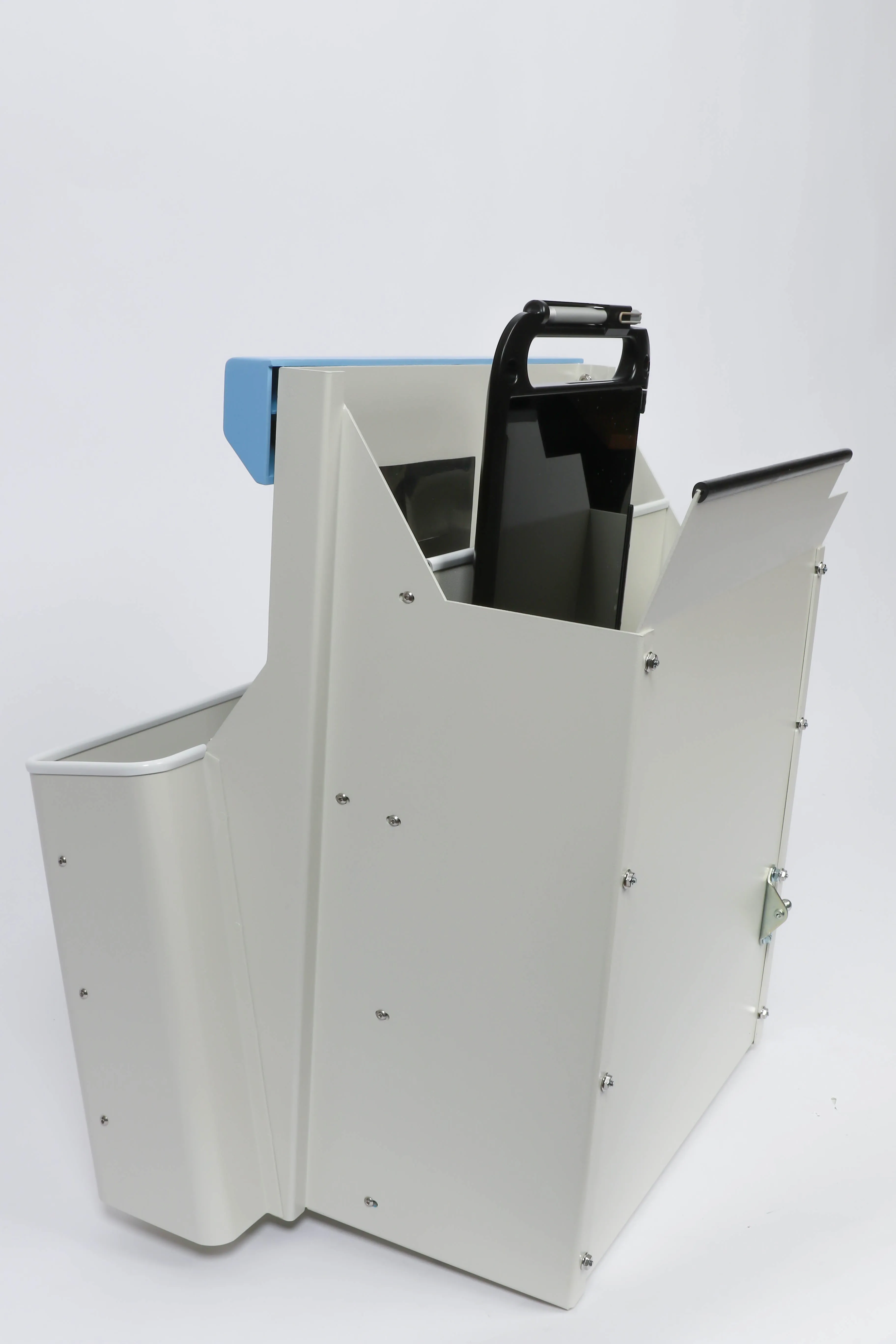

Replacement GE AMX4 or AMX4 Plus storage bin including:
- DR Panel Storage for 14x17 & 10x12 DR Panels
- DR Protective Grid or un-gridded Encasement Storage Slot
- Latex Glove storage
- Disinfectant Wipes Storage
- Additional Technician Storage BayXDR Hybrid Storage Bin Surface Pro Tablet Pocket for RadmediX DR Systems
- White Delrin
GE AMX-4 Crate
Master 14x17 Wireless Flat Panel DR System
14 x 17-inch GOS Wireless, cassette size DR Flat Panel Detector, with advanced acquisition VOYANCE software and PACS
System Specifications
14x17 inch GOS Wireless, cassette size DR Flat Panel Detector
- Active area (Real Image Size):
- 360x430 (14x17 inches)
- Overall Dimensions: 344x459x15 mm (13.5x18x0.59 inches)
- Weight: 3.8 /- 0.25 Kg
- Power Consumption: Idle - 3.3 watts, Acquisition - 7.8 watts, Image Transfer - 10.2 watts
- Pixel Pitch: 139 μ m
- Pixel Matrix Size: 3,052 (v) x 2,456 (h)
- A/D Conversion: 16 bit
- X-ray Voltage Range: 40-150 kVp
- Wireless Modes STA or AP: 802.11 a/g/n/ac, 2x2 MIMO
- 2 Batteries, Battery Charger, and Back-up Cable Included
- Automatic Parameter Selection
- Specific Anatomical Post-processing

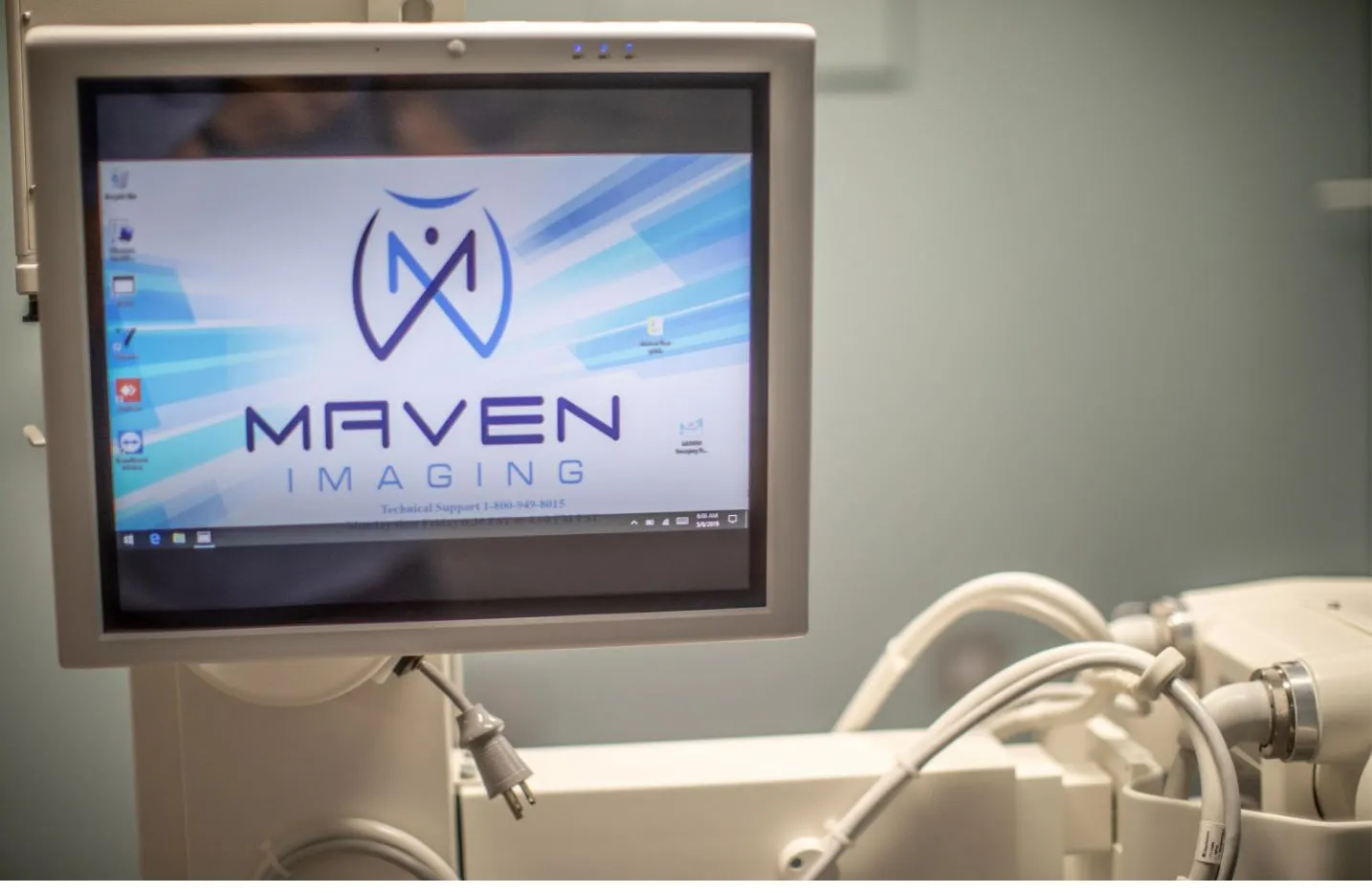

Voyance Acquisition Software and Mini Pacs
10 Viewer license
Workstation pre-configured and with the Software installed
On-site Installation
